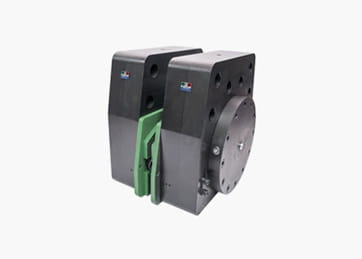

COREMO ID 3000 DIREKTAKTIVERAD HYDRAULISK BROMS - OLJEAKTIVERAD
Art.nr: ID 3000
COREMO ID 3000 direct hydraulic brakes can be used in industrial applications which require regulation of the clamping force in response to variations in pressure. The brake has an ON/OFF inductive sensor indicating opening and closure. An indicator warns of the maximum lining pad wear level. The brake operating temperature varies from -40 [°C] to + 200 [°C].
| Braking force F | ID 3000 300000 N at 100 bar |
|---|---|
| Dynamic torque | = F • (disc radius in m - 0.124) = Nm |
| Max pressure | 100 bar |
| Max total wear | 20 mm |
| Thickness of new lining | 16 mm |
| Continuous thermal capacity Qc | 80 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.2 dm3 |
Download - Hydraulic Brakes Brochure.pdf
För reservdelar, kontrollera serienumret på din broms och skicka det till [email protected]. Med serienumret kan vi identifiera alla reservdelar du behöver.
Vi erbjuder Coremo original bromsbelägg, för mer information, kontakta oss på [email protected].
