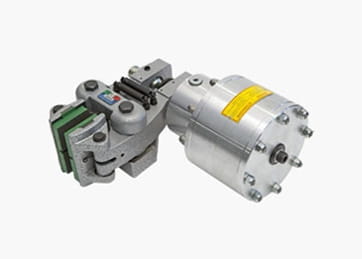

The COREMO D3N-ID/17 spring-applied hydraulic caliper brake is operated by helical springs which generate a constant clamping force. The hydraulic operating system releases the brake by compressing the springs inside the thruster.

The brake may be used as a safety brake or as a holding and parking brake.

Braking force F D3N-ID/17 17000 N
Minimum release pressure 60 bar
Max pressure 100 bar
Hydraulic fluid Mineral oil based SAE/ISO 46
Total oil displacement for 2 mm movement of each pad 0.017 dm3
Dynamic torque = F • (disc radius in m - 0.033) = Nm
Max total wear 12 mm
Thickness of new lining 11 mm
Continuous thermal capacity Qc 3.4kW

För reservdelar, kontrollera serienumret på din broms och skicka det till [email protected]. Med serienumret kan vi identifiera alla reservdelar du behöver.

Vi erbjuder Coremo original bromsbelägg, för mer information, kontakta oss på [email protected].
