COREMO ID 2500 N DIREKTAKTIVERAD HYDRAULISK BROMS - FJÄDERAKTIVERAD
Art.nr: ID 2500 N

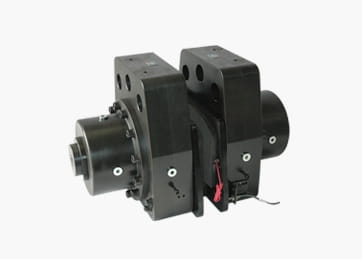

The COREMO ID 2500N hydraulic brake is operated by cup springs which generate a constant clamping force. The hydraulic operating system releases the brake by compressing the springs inside the thruster. The brake may be used as a safety brake or for parking and holding. It also has an ON/OFF inductive sensor indicating opening and closure. A wear indicator warns of the maximum lining pad wear level. The brake operating temperature is -40 [°C] to + 200 [°C].
| Braking force F | 150000 N |
|---|---|
| Dynamic torque | = F • (disc radius m - 0.101) = Nm |
| Minimum release pressure | 180 bar |
| Max pressure | 220 bar |
| Max total wear | 18 mm |
| Thickness of new lining | 14 mm |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.3 dm3 |
Download - Hydraulic Brakes Brochure.pdf
För reservdelar, kontrollera serienumret på din broms och skicka det till [email protected]. Med serienumret kan vi identifiera alla reservdelar du behöver.
Vi erbjuder Coremo original bromsbelägg, för mer information, kontakta oss på [email protected].
