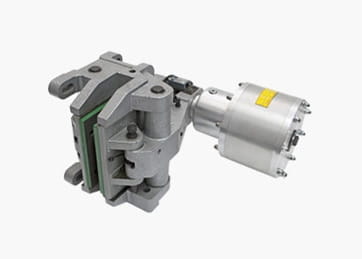

The COREMO D3N-ID spring-applied hydraulic caliper brake is operated by helical springs which generate a constant clamping force. The hydraulic operating system releases the brake by compressing the springs inside the thruster.

The brake may be used as a safety brake or as a holding and parking brake.

Braking force F E4N-ID 42000 N
Minimum release pressure 60 bar
Max pressure 100 bar
The torque values specified are obtained with n. 16 springs
Torque proportionally less are achievable with n. 14 - 12 - 10 springs
Hydraulic fluid Mineral oil based SAE/ISO 46
Total oil displacement for 2 mm movement of each pad 0.054 dm3
Dynamic torque = F • (disc radius in m - 0.065) = Nm
Max total wear 12 mm
Thickness of new lining 13 mm
Continuous thermal capacity Qc 20 kW
