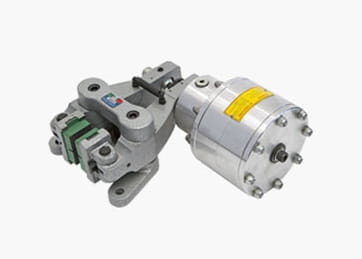

The COREMO A2N-ID spring-applied hydraulic caliper brake is operated by helical springs which generate a constant clamping force. The hydraulic operating system releases the brake by compressing the springs inside the thruster.

The brake may be used as a safety brake or as a holding and parking brake.

Braking force F A2N-ID 5900 N
Minimum release pressure 25 bar A2N-ID
Max pressure 100 bar
The torque values specified are obtained with n. 4 springs for 2N-ID
Torque proportionally less are achievable with n. 2 springs for 2N-ID
Hydraulic fluid Mineral oil based SAE/ISO 46
Total oil displacement for 2 mm movement of each pad 0.018 dm3
Dynamic torque = F • (disc radius in m - 0.03) = Nm
Max total wear 16 mm
Thickness of new lining 16 mm
Continuous thermal capacity Qc 1.7 kW
